McCall Refrigerator Parts Freezer Parts

McCall 2 Section Self Contained Solid Door Reach-in Freezer - Series 2

Model MCCF51-S or MCCF51-SH (Half Doors)





Download McCall Specs PDF Specs Download McCall Manual Owner/Instruction Manual

Self-Contained Solid Door Reach-In Freezer
Manitowoc has re-engineered its McCall
Refrigeration line to cater to those operations that are looking
for dependable, energy efficient equipment that is competitively
priced. The McCall Series 2 features a top mount refrigeration
system, stay open doors for easy use, seamless ABS interior
liners for quick cleaning and durability and ability to hold 18” by
26” sheet pans. For those reasons coupled with the minimal
energy usage makes McCall Series 2 a perfect fit for any
laboratory application.

Product Features:

  • Aluminum interior and exterior, stainless front
  • Built in door locks with geavy duty strikes
  • Low profile metal door handle
  • Pressure relief valve is standard to prevent door vapor lock
  • Exterior dial thermometer
  • Easy to use electomechanical control
  • Key Lock shroud for easy access to refrigeration system
  • Three epoxy coated wire shelves per section
  • Tough ABS interior door liners
  • 10' cord and plug attached
  • Edgemount door hinges
  • Environmentally friendly foam insulation - high density
    foamed in place environmentally friendly, Kyoto Protocol
    Compliant, Non ODP (Ozone Depletion Potential), Non
    GWP (Global Warming Potential) polyurethane insulation
    keeps energy costs low
  • Environmentally friendly R404a refrigerant
  • One year parts and labor, 5 year compressor warranty, limited
    lifetime liner warranty
  • Interior accepts 18" x 26" sheet pans
  • Self closing doors with stay open feature at 120°
  • Low profile metal door handles

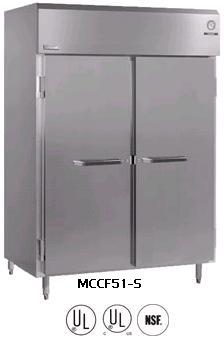

McCall MCCF51-S

Technical Specifications:

Width x Depth x Height 55"  x 34"  x 811/8" (139.70 cm x 86.36 cm x 206.0 cm)
Weight 710 lb (322 kg)
Power Output 12.0
Exterior Models shall have corrosion resistant aluminum on exterior cabinet sides and will have stainless front and shroud.
Interior Cabinet interior shall be corrosion resistant heavy gauge aluminum. Bottom and top surfaces shall be die stamped to provide radius corners and recessed floor. Three epoxy coated wire shelves are provided per section. Shelves rest on clips which are adjustable on 1" increments on stainless steel pilasters affixed to the cabinet interior. Pilasters are removable without tools for cleaning. Mounted to the interior ceiling, the interior incandescent light is controlled automatically through a switch mounted in the hinge assembly to protect against breakage. An air duct shall be mounted to the ceiling assuring low velocity, even air movement throughout the cabinet interior.
Doors Exterior shall be corrosion resistant stainless steel. Interior liner is a resilient high impact, easily cleanable ABS material. Each door has two edge mount, self closing, cam lift style hinges. Doors can be removed from the cabinet without the use of tools. Metal door handle is a low profile design minimizing impact on aisle space. Keyed door lock is mounted in the door next to the handle. Lock engages into a heavy duty strike mounted to the cabinet face. Door gaskets are magnetic and mount to the door snapping in place and are removable without tools.
Refrigeration System All components are mounted to the exterior of the cabinet ceiling, outside the cooling zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R404A refrigerant is used. The system has the capability of maintaining between -5F and 0F in heavy use laboratory operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. System is controlled using an electronic temperature control, which provides improved pull down times, reduces compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and is operating at optimum efficiency. Evaporator condensate is eliminated using an energy efficient hot gas system.
Electrical Standard electrical on one and two section units shall be 115V, 60 Hz single phase. A 10' cord and plug is supplied and attached to a junction box mounted on the exterior top of the cabinet. Three section units shall be 115/208-230 and will require hardwire connections.
Legs Units are standard with painted metal legs and are 6" high with 1" adjustability. Shipped loose for field installation.
McCall reserves the right to make changes to the design or specifications without prior notice.
