McCall 1 Section Self Contained Glass Door Pass-Thru Refrigerator

Model MCCRPT1-G or MCCRPT1-GH (Half Doors)





Download McCall Specs PDF Specs Download McCall Manual Owner/Instruction Manual

Self-Contained Glass Door Pass-Thru Refrigerators

Energy Efficiency Rating
Energy Use : 4.58 KWh daily

Product Features:

  • Aluminum interior and exterior, stainless front and back
  • Built in door locks with heavy duty strikes
  • Pressure relief valve is standard to prevent door vapor lock
  • Exterior dial thermometer
  • Easy to use electromechanical control
  • Key lock shroud for easy acces to refrigeration system
  • Three epoxy coated wire shelves per section
  • 10' attached cord and plug on 115v units
  • 6" adjustable stainless steel legs standard
  • Shipped loose for installation in field
  • Energy savings door heater switch
  • Environmentally friendly foam insulation
  • High density foamed in place invironmentally friendly, Kyoto
    Protocol Compliant, Non ODP (Ozone Depletion Potential),
    Non GWP (Global Warming Potential) polyurethane keeps
    energy costs down
  • One year parts and labor warranty
  • Five year compressor warranty

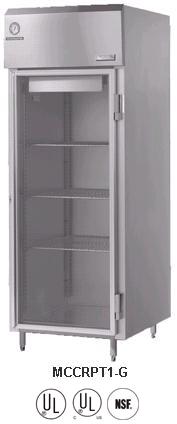

McCall MCCRPT1-G

Technical Specifications:

Width x Depth x Height 291/8"  x 361/4"  x 85" (74 cm x 92 cm x 216 cm)
Weight 454 lb (206 kg)
Power Output 7.8  Amps
Exterior Models shall have corrosion resistant aluminum on exterior cabinet sides and will have stainless front and rear shrouds.
Interior Cabinet interior shall be corrosion resistant heavy gauge aluminum. Bottom and top surfaces shall be die stamped to provide radius corners and recessed floor. Three epoxy coated wire shelves are provided per section. Shelves rest on clips which are adjustable on 1 increments on stainless steel pilasters affixed to the cabinet interior. Pilasters are removable without tools for cleaning. Mounted to the interior ceiling, the interior fluorescent light is controlled automatically through a switch mounted in the hinge assembly to protect against breakage. An air duct shall be mounted to the ceiling assuring low velocity, even air movement throughout the cabinet interior.
Doors Glass door models have a glass door on one side and a solid door on the other. Double paned tempered thermopane glass. Constructed with a combination of extruded aluminum and PVC. Each door has two edgemount, self-closing, cam lift style hinges. Doors can be removed from the cabinet without the use of tools. Door handle is continuous along vertical dimension of the door. Door gaskets are magnetic and mount to the door, snapping in place and removable with out tools. Keyed door lock is mounted to the door. Lock engages into a heavy duty strike mounted to the cabinet face.
Refrigeration System All components are mounted to the exterior of the cabinet ceiling, outside the cooling zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R404A refrigerant is used. The system has the capability of maintaining between 27F and 40F in heavy use operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. System is controlled using an electronic temperature control, which provides improved pull down times, reduces compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and is operating at optimum efficiency. Evaporator condensate is eliminated using an energy efficient hot gas system.
Electrical Standard electrical on one and two section units shall be 115V, 60 Hz single phase. A 10 cord and plug is supplied and attached to a junction box mounted on the exterior top of the cabinet. Three section units shall be 115/208-230 and will require hardwire connections.
McCall reserves the right to make changes to the design or specifications without prior notice.
