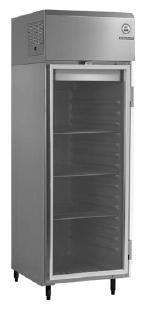

McCall Single Section Glass Door Reach-in Refrigerator

Model MCCR25-G or MCCR25-GH (Half Doors)



Download McCall Specs PDF Specs Download McCall Manual Owner/Instruction Manual

Glass Door Reach-in Refrigerators
Manitowoc has re-engineered its
McCall Refrigeration line to cater to those
operations that are looking for dependable,
energy efficient equipment that is competitively priced.
The McCall Series 2 features a top mount refrigeration
system, stay open doors for easy use, seamless ABS
interior liners for quick cleaning and durability and ability
to hold 18” by 26” sheet pans. For those reasons coupled
with the minimal energy usage makes McCall Series 2 a
perfect fit for any application.

Energy Efficiency Rating
Energy Use : 3.70 KWh daily

Product Features:

  • Stainless steel front shroud
  • Aluminum sides
  • Seamless, ABS interior liner
  • Top mounted refrigeration system
  • High performance refrigeration, designed to maintain 27°F to 40°F
  • Easy to adjust epoxy shelves (three per section)
  • Easy to read digital thermometer
  • 10' cord and plug attached
  • Edgemount door hinges
  • High density foamed in place environmentally friendly,
    Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential),
    Non GWP (Global Warming Potential) polyurethane insulation keeps energy costs low
  • Environmentally friendly R404a refrigerant
  • One year parts and labor, 5 year compressor warranty, limited lifetime liner warranty
  • Interior accepts 18" x 26" sheet pans
  • Self closing doors with stay open feature at 120°
  • Low profile metal door handles
  • 6" adjustable legs (field installed) standard
McCall MCCR25G

Technical Specifications:

Width x Depth x Height 259/16"  x 33"  x 805/16" (65 cm x 84 cm x 204 cm)
Weight 274 lb (124.2864 kg)
Power Output 6.0  Amps
Exterior Top and bottom are constructed of 24-gauge galvanized steel. Exterior sides are 0.032 aluminum. Front housing is 22-gauge stainless steel.
Doors Unit is provided with hinged glass front door(s). Doors are provided with magnetic gaskets, self-closing, edgemount hinges, and handle(s).
Interior Liner is constructed of seamless, one piece gray ABS material with 15 molded shelf supports spaced 3.00" (76mm) apart. Three epoxy coated wire shelves, rated at 250 lb. load capacity each, are provided per section. Liner comes with a limited lifetime warranty. Units are completely insulated with a minimum of 2.00" (5cm) high density foamed in place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane. Interior is lit by one 15-watt fluorescent light on one door models, one 40-watt fluorescent light on two door models and three 15-watt fluorescent lights on three door models. Lights are located outside of the cooling zone. Fluorescent lights are operated with a manual on/off switch.
Refrigeration System All components are mounted to the exterior cabinet ceiling, outside the cooling zone and are assembled as one piece and can be removed as one piece. Environmentally friendly R404A refrigerant is used. System has the capability of maintaining between 27°F and 40°F in heavy use operations. Refrigerant is metered using a highly responsive thermostatic expansion valve. System is controlled using an electronic temperature control, which provides improved pull down times, reducing compressor cycling and longer compressor life with lower energy consumption. Control system uses adaptive defrost to assure evaporator coil is free of ice and operating at optimum efficiency. Evaporator condensate is eliminated using an energy efficient hot gas system. Temperature is displayed with exterior digital thermometer.
Other Unit is supplied standard with a 10' cord and plug, attached. Units are standard with legs. Legs are constructed of painted metal and are 6" high with 1" adjustability to compensate for installation location factors. Shipped loose for field installation.
McCall reserves the right to make changes to the design or specifications without prior notice.
