McCall Refrigerator Parts Freezer Parts

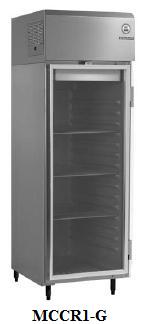

McCall 1 Section Self Contained Glass Door Refrigerator
Model MCCR1-G or MCCR1-GH
(Half Doors) |
|
|
PDF Specs
Owner/Instruction Manual
Self Contained Glass Door Refrigerator
The McCall Series 1 provides the customer with a high performance
in every type
of environment and extremely durable construction all while using
very little energy.
Every detail is engineered for functionality, from the removable
top mounted
refrigeration system to the “ACT” control providing
a more reliable and
superior performance. The McCall Series 1 is a perfect fit for any
work environment.
Energy Efficiency Rating
Energy Use : 3.8 KWh daily
Product Features:
- Aluminum interior and exterior, stainless front
- Built in door locks with heavy duty strikes
- Pressure relief vlave is standard to prevent door vapor lock
- Exterior digital thermometer
- Easy to use electromechanical control
- Key lock shroud for easy access to refrigeration system
- Three epoxy coated wire shelves per section
- 10' attached cord and plug
- 6" adjustable black legs (shipped loose for installation
in field) standard
- High density foamed in place environmentally friendly, Kyoto
Protocol Compliant,
non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential)
polyurethane keeps energy costs low
- Energy savings door heater switch
- One year parts & labor warranty
- Five year compressor warranty
|
|
Technical Specifications:
Weight |
418 lb (189.6048 kg) |
Power Output |
6.8 Amps |
Exterior |
Models shall have corrosion resistant aluminum on exterior
cabinet sides and will have stainless front and shroud. |
Interior |
Cabinet interior shall be corrosion resistant heavy
gauge aluminum. Bottom and top surfaces shall be die stamped to provide
radius corners and recessed floor. Three epoxy coated wire shelves
are provided per section. Shelves rest on clips which are adjustable
on 1" increments on stainless steel pilasters affixed to the
cabinet interior. Pilasters are removable without tools for cleaning.
Mounted to the interior ceiling, the interior incandescent light is
controlled automatically through a switch mounted in the hinge assembly
to protect against breakage. An air duct shall be mounted to the ceiling
assuring low velocity, even air movement throughout the cabinet interior. |
Doors |
Exterior shall be corrosion resistant stainless steel.
Interior liner is a resilient high impact, easily cleanable ABS material.
Each door has two edge mount, self closing, cam lift style hinges.
Doors can be removed from the cabinet without the use of tools. Metal
door handle is a low profile design minimizing impact with aisle space.
Keyed door lock is mounted in the door next to the handle. Lock engages
into a heavy duty strike mounted to the cabinet face. Door gaskets
are magnetic and mount to the door snapping in place and are removable
without tools. |
Refrigeration System |
All components are mounted to the exterior of the cabinet
ceiling, outside the cooling zone and are assembled as one piece and
can be removed as one piece. Environmentally friendly R404A refrigerant
is used. The system has the capability of maintaining between 27ºF
and 40ºF in heavy use operations. Refrigerant is metered using a highly
responsive thermostatic expansion valve. System is controlled using
an electronic temperature control, which provides improved pull down
times, reduces compressor cycling and longer compressor life with
lower energy consumption. Control system uses adaptive defrost to
assure evaporator coil is free of ice and is operating at optimum
efficiency. Evaporator condensate is eliminated using an energy efficient
hot gas system. |
Electrical |
Standard electrical connections shall be 115V, 60 Hz
single phase. A 10' cord and plug is supplied and attached to a junction
box mounted on the exterior top of the cabinet. |
Legs |
Units are standard with painted metal legs and are
6" high with 1" adjustability. Shipped loose for field installation. |
|
McCall reserves the right to make changes to the design
or specifications without prior notice. |
|
