McCall Single Glass Hinged Door Value Cooler

Model MER17-G





Download McCall Specs PDF Specs Download McCall Manual Owner/Instruction Manual

Single Glass Hinged Door Value Cooler
To fill out the McCall product offering, a line of visual merchandisers has
been added to the mix. The MER series offers a high quality construction
and efficient operation without a high price. The line ranges from 3 cubic
feet to 67 cubic feet – something for every application.

Product Features:

  • Built in door handle
  • Blue top header sign standard - other options available
  • Forced air evaporator for quick temperature pull down
  • Heavy duty hinges with automatic return
  • Attractive PVC frame
  • Double paned Low-e glass door
  • Four heavy duty shelves
  • Robust body with thick walls, injected with CFCfree polyurethane
  • Exterior cabinet made of galvanized, pre-painted steel, with baked
    polyester paint
  • NSF compliant interior cabinet
  • Heavy duty condensing unit for R134a, located in front for easy-access
    maintenance
  • Forced-air condenser made of copper and aluminum, resistant to rust
    and saline environments
  • Reinforced 16-gauge steel base
  • UL compliant electrical components
  • One year parts and labor warranty and an additional four year
    compressor warranty (U.S.A./Canada only)

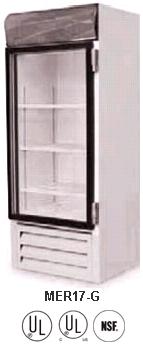

McCall MER17-G

Technical Specifications:

Width x Depth x Height 2915/16"  x 235/8"  x 74" (76 cm x 60 cm x 188 cm)
Weight 267 lb (121.1112 kg)
Power Output 3.6  Amps
Exterior The exterior is constructed of galvanized, pre-painted steel, with a baked polyester paint. The base is reinforced 16-gauge steel.
Interior The interior is an attractive, NSF approved, white interior cabinet. Its robust body is constructed of thick walls. MER12-G walls measure 1.69" (4cm), MER17-G walls measure 2.25"(6cm). The entire cabinet structure is insulated with high-density foamed in place CFC-free polyurethane. Innovative LED interior lighting design is protected by safety shielding. Four adjustable heavy duty coated wire shelves are provided.
Refrigeration System Forced air condenser is made of copper and aluminum, resistant to rust and saline solutions. The self-contained refrigeration system uses environmentally friendly (CFC-free) 134A refrigerant. It is located in the front of the unit for easy access. The refrigerant flow is controlled using a capillary tube. Forced air evaporator ensures quick temperature pull-down.
Door Extruded frame door is constructed with Low-E, double pane thermal glass. They are the latest in energy efficient technology. Each door has heavy duty hinges with automatic return. Handle shall be built in.
McCall reserves the right to make changes to the design or specifications without prior notice.
